Puncture Testing
For Soft Tissues & Biomaterials

Puncture testing measures the resistance of a material to localized penetration by an indenter or probe. In biomaterials research, puncture testing is widely used to evaluate needle penetration force, membrane integrity, and failure behaviour in soft tissues, hydrogels, and thin biomaterials that experience localized loading during clinical use or implantation.

What Puncture Testing Measures

Puncture testing characterizes how a material responds to concentrated loading. In a typical biomaterial puncture test, force and displacement are recorded to characterize localized penetration and failure behaviour.

This approach is commonly used as a membrane puncture test for evaluating rupture and tear propagation in thin biomaterial layers.

Measurement Examples

Penetration force and puncture resistance
Force displacement behaviour during penetration
Puncture stiffness and failure force
Membrane rupture and tear propagation
Localized deformation prior to failure
Effects of hydration and temperature
Rate dependent puncture mechanics

Because puncture loading is highly localized, puncture testing provides insight into mechanical behaviour not captured by bulk tensile or compression tests.

Puncture Testing in Biomaterials Research

Puncture testing is used in biomaterials research where materials experience localized penetration, needle insertion, or membrane rupture during use.

A needle penetration force test quantifies insertion mechanics, tissue resistance, and device–tissue interactions relevant to drug delivery and minimally invasive procedures.

Puncture testing assesses failure behaviour in membranes, coatings, and barrier materials subjected to localized loading.

Soft hydrogels often fail by localized puncture rather than uniform deformation, making puncture testing essential for realistic mechanical evaluation.

Materials used in wound care, catheters, and implantable devices are frequently evaluated for puncture resistance to ensure durability and safety.

Puncture mechanics data inform computational models of tissue damage, rupture initiation, and material failure under concentrated loads.

Common Sample Types for Puncture Testing

Hydrogels and soft polymer gels
Biological membranes and ECM sheets
Skin and wound dressing materials
Vascular and cardiac tissues
Thin elastomer films
Polymer coatings
Tissue engineered constructs
Micro-scale biomaterials

How a Puncture Test Works

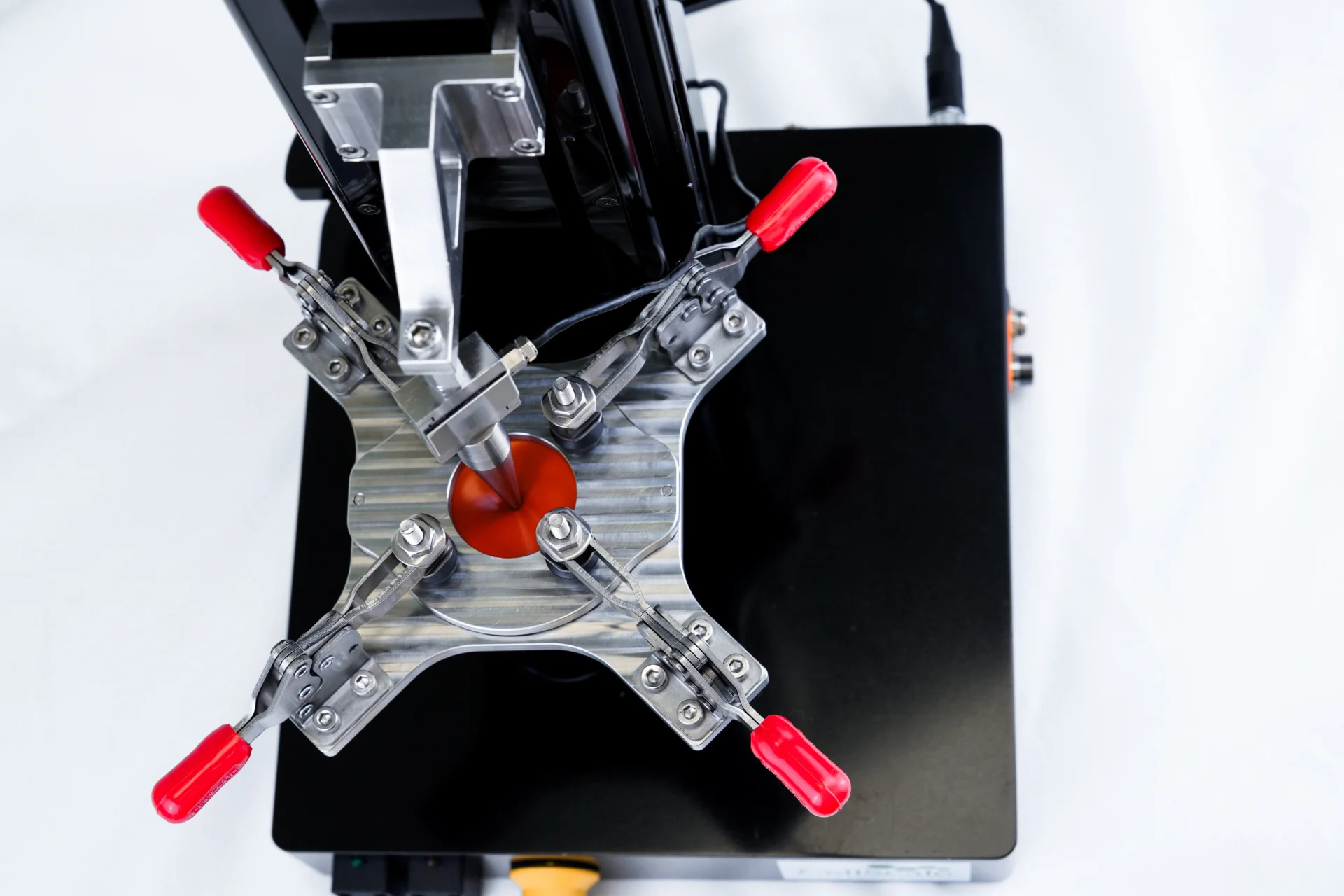

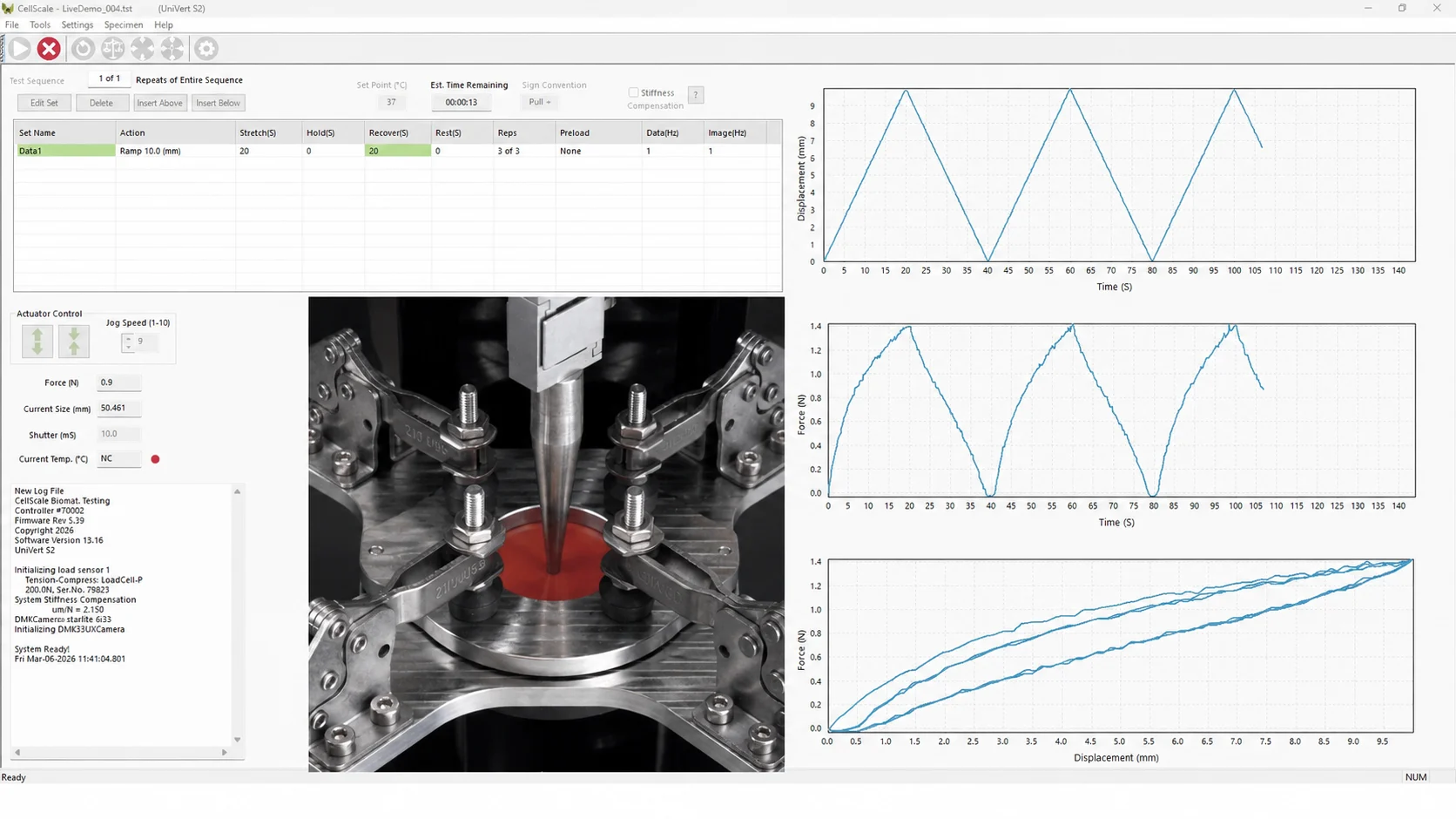

In puncture testing, a probe or needle is driven into a material at a controlled rate while force and displacement are recorded. The resulting force–displacement data quantify penetration resistance and failure behaviour.

Indenter and needle geometry selection

Different probe shapes and sizes are used to replicate clinical needles, sharp puncture, or blunt penetration conditions.

Displacement-controlled puncture protocols

The probe advances at a controlled speed to ensure repeatable measurement of penetration force and rupture behaviour.

Hydrated and temperature-controlled puncture testing

Puncture tests can be performed in fluid environments to preserve physiologic conditions for soft tissues and hydrogels (with custom fixtures).

Rate-dependent puncture mechanics

Varying penetration speed reveals rate-sensitive failure behaviour common in viscoelastic and biological materials. This behaviour is central to understanding soft tissue puncture mechanics, where viscoelasticity and loading rate strongly influence failure response.

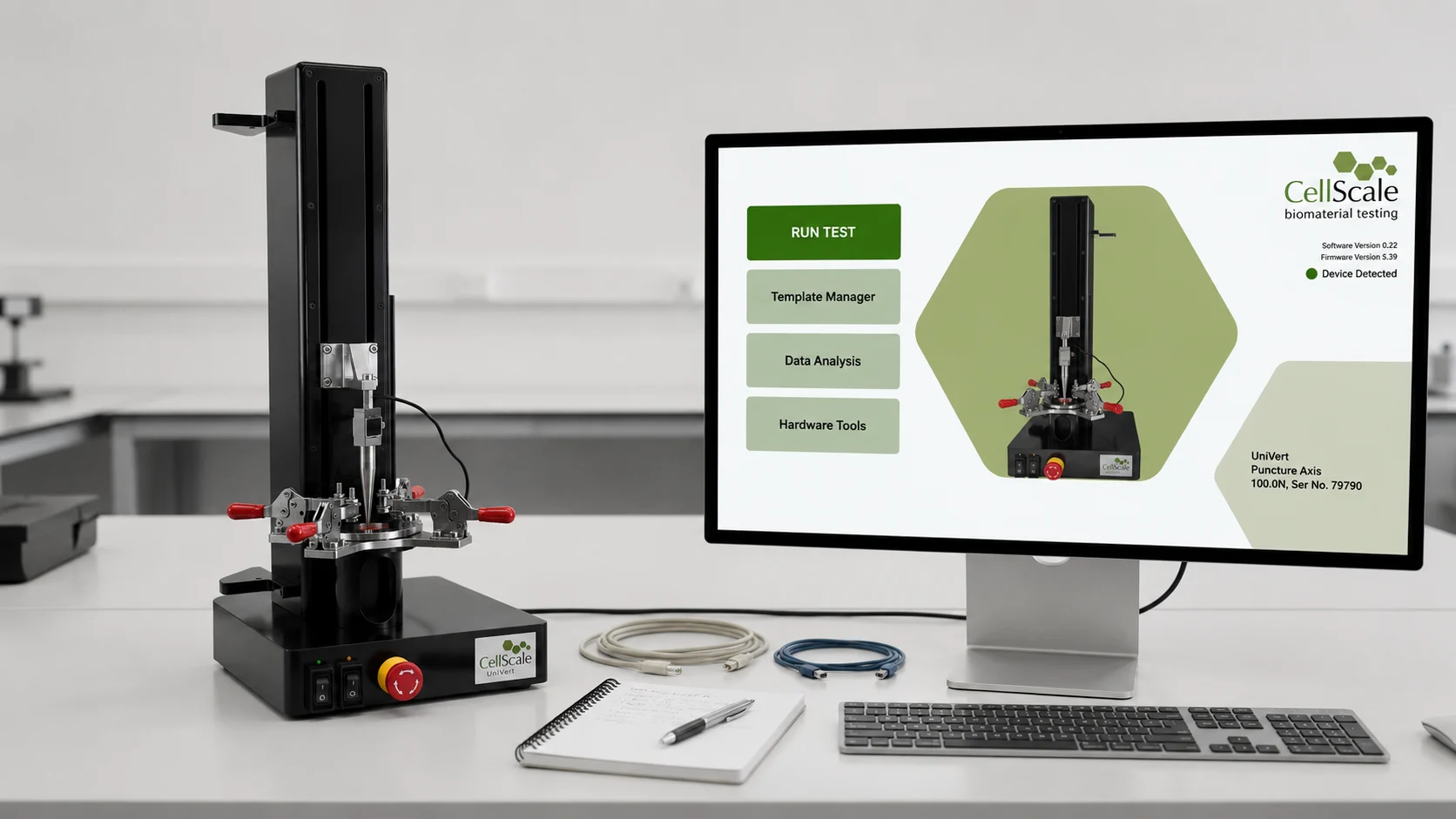

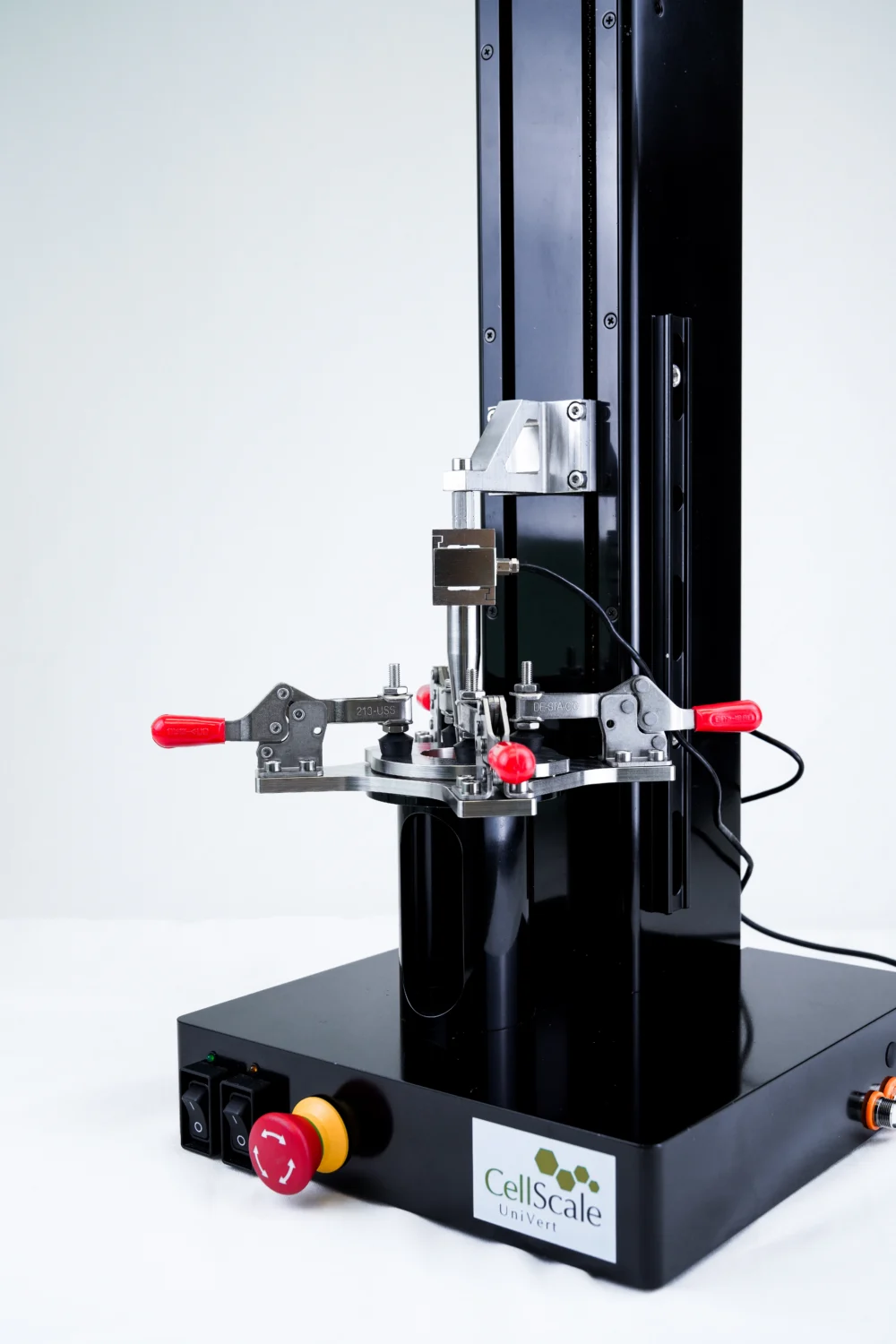

Recommended CellScale Instruments for Puncture Testing

Two CellScale systems support puncture testing with precise displacement and force control for characterizing localized penetration in soft tissues and biomaterials.
