Mechanical Stimulation
Bioreactor Systems
for Tissue and Cell Culture
CellScale MechanoCulture platforms are mechanical stimulation bioreactor systems designed for long-duration experiments in culture. These instruments help researchers apply repeatable loading profiles while tissues, cells, and engineered constructs remain in sterile, physiologic environments. If you are evaluating a tissue bioreactor for mechanobiology studies or building workflows for cell culture mechanical stimulation in an incubator, this page will help you choose the right platform and stimulation mode.
Benchtop Mechanical Stimulation Bioreactor Systems
Each MechanoCulture platform is a bioreactor built around a simple goal: to deliver controlled mechanical inputs in culture with repeatable sterile workflows. Compared to many general-purpose tissue bioreactor designs, these systems emphasize programmable regimens, incubator compatibility, and data logging that supports stiffness tracking and cohort comparisons.
MCJ1
MCT6
MCTR
These three mechanical testing machines are designed to complement one another across specimen scale and loading mode, rather than overlap.
How to Choose A Mechanical Stimulation Bioreactor
The best mechanical stimulation bioreactor choice depends on stimulus type, specimen format, and how you want to structure cohorts. Use the guide below to match your study design to the MechanoCulture platform that best fits.
Choose a cyclic strain bioreactor for uniaxial stretch stimulation
Select the MCJ1 or MCT6 when you need uniaxial stretch regimens such as sinusoidal cyclic strain, intermittent dosing, or multi-phase conditioning
- The MCJ1 is the preferred cyclic strain bioreactor when you want per-well control for substrate stretching and smaller constructs, with stiffness tracking.
- The MCT6 is a strong fit for higher-force tension stimulation with clamp-based mounting without force control per-well or stiffness tracking.
Choose a compression stimulation bioreactor for contact compression
Select the MCTX when uniaxial contact compression is the primary stimulus

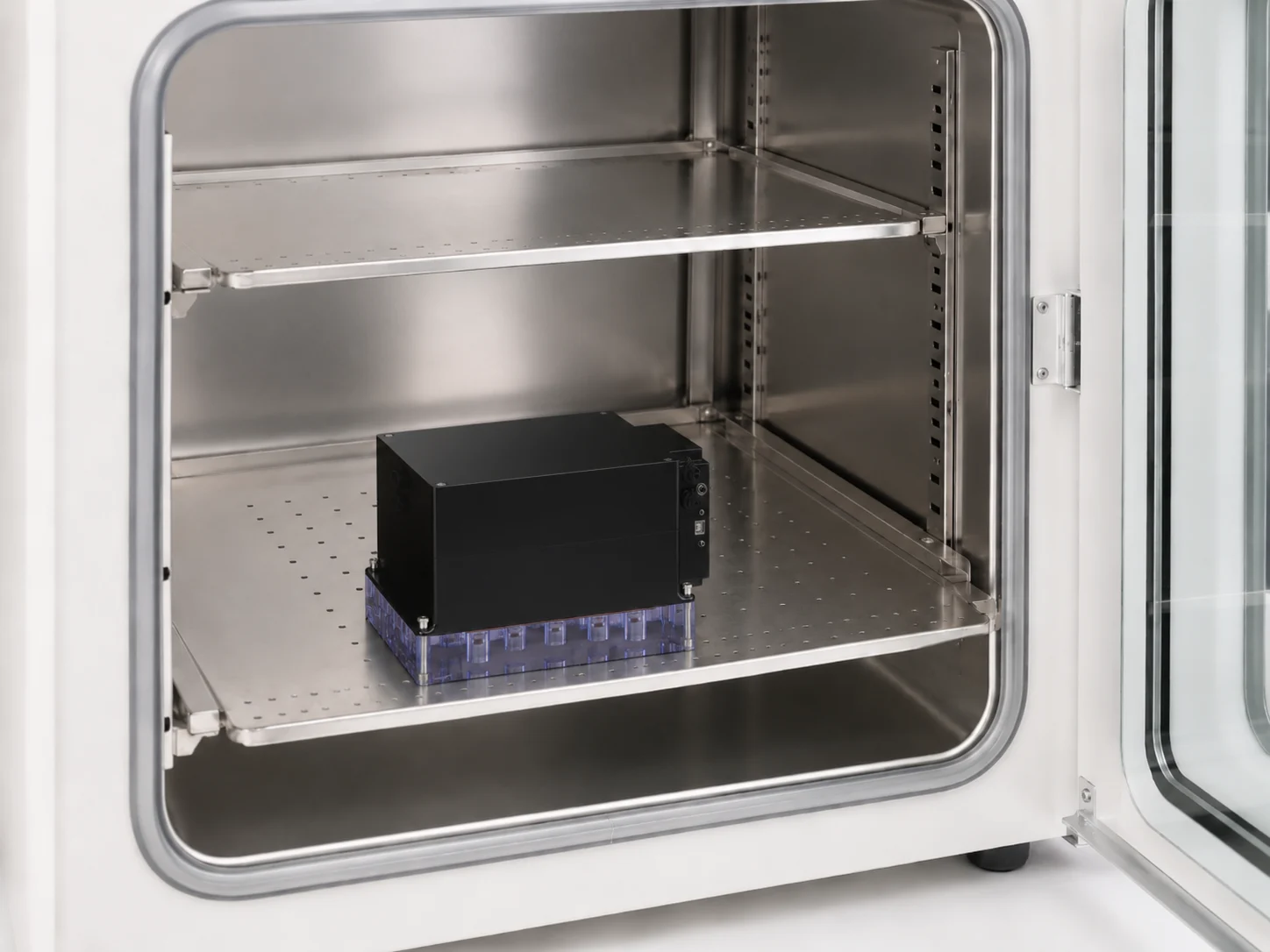

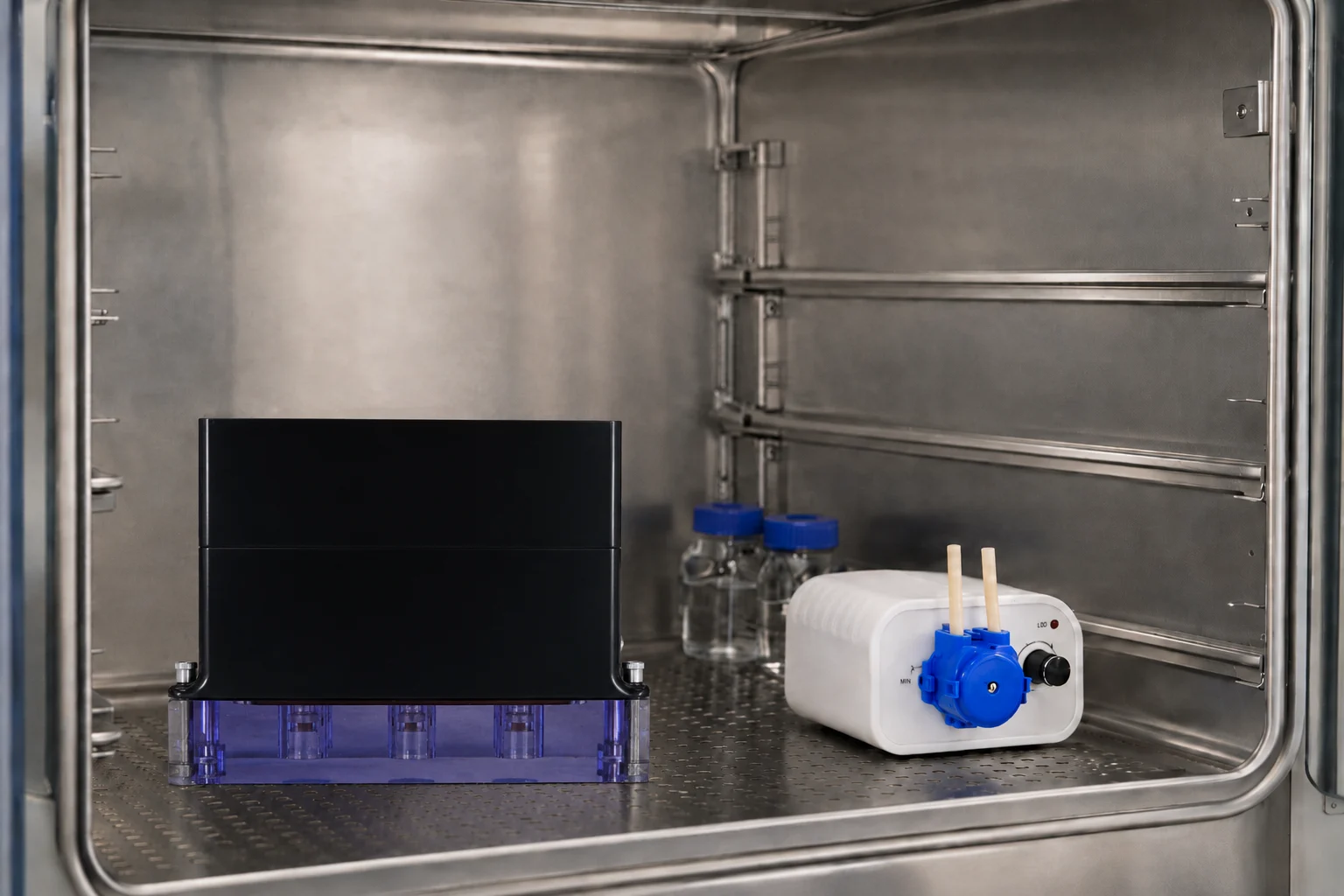

- The MCTX is a dedicated compression stimulation bioreactor for cyclic compression studies and long-duration conditioning, with per-well control and stiffness tracking.
Choose hydrostatic pressure stimulation for pressure dosing through media
Select the MCTR when you want pressure as the stimulus, applied through media rather than through direct contact compression
- The MCTR supports hydrostatic pressure stimulation regimens in sealed wells for parallel cohorts and repeatable dosing profiles.
Relevant Research Applications
Our MechanoCulture platforms are used as tissue-engineering bioreactor systems across mechanobiology and biomechanics, where physiology-relevant loading conditions improve relevance and reproducibility. Use these application hubs to connect your workflow to the right CellScale bioreactor.
Conditioning regimens for natural and engineered tissues, anisotropic constructs, and time-dependent response.
Tissue and cell mechanical stimulation workflows for mechanotransduction and mechanically active culture models.
Mechanical stimulation approaches for hydrogels, scaffolds, and functional soft materials in culture.
Tissue & Cell Mechanical Stimulation in Culture
Mechanobiology experiments often depend on delivering the right stimulus consistently over days or weeks. A mechanical stimulation bioreactor supports this by controlling waveform, frequency, magnitude, and duty cycle while samples remain in a stable, sterile environment. For many studies, cell mechanical stimulation is the experimental input that drives changes in gene expression, matrix deposition, tissue maturation, and time-dependent remodeling.
Common stimulation workflows include:
- Mechanotransduction studies where loading is the perturbation
- Construct maturation and functional conditioning in tissue engineering
- Time-dependent adaptation, remodeling, and phenotype shifts
- Cohort comparisons across stimulation dose, frequency, or schedule
If your primary goal is to measure material properties rather than deliver a culture stimulus, one of our mechanical testers may be a better fit. For stimulation-first workflows, the MechanoCulture series functions as a tissue bioreactor family focused on repeatable mechanical dosing in culture.
Mechanical Stimulation Bioreactor Comparison
MechanoCulture J1

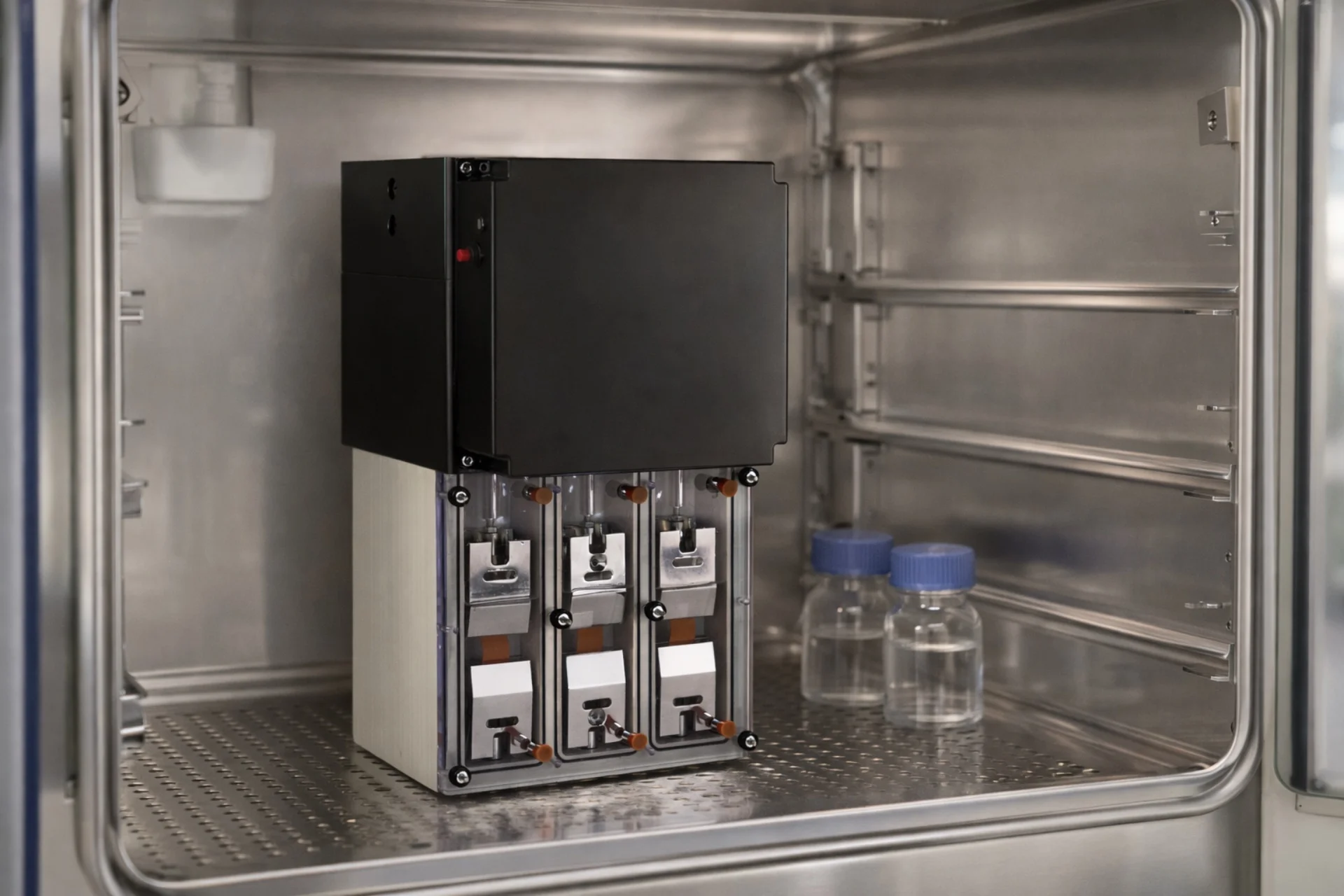

A cyclic strain bioreactor with 6 chambers, independent per-chamber control, and logged force and displacement data for incubator-based stretch stimulation and substrate stretching.
MechanoCulture T6

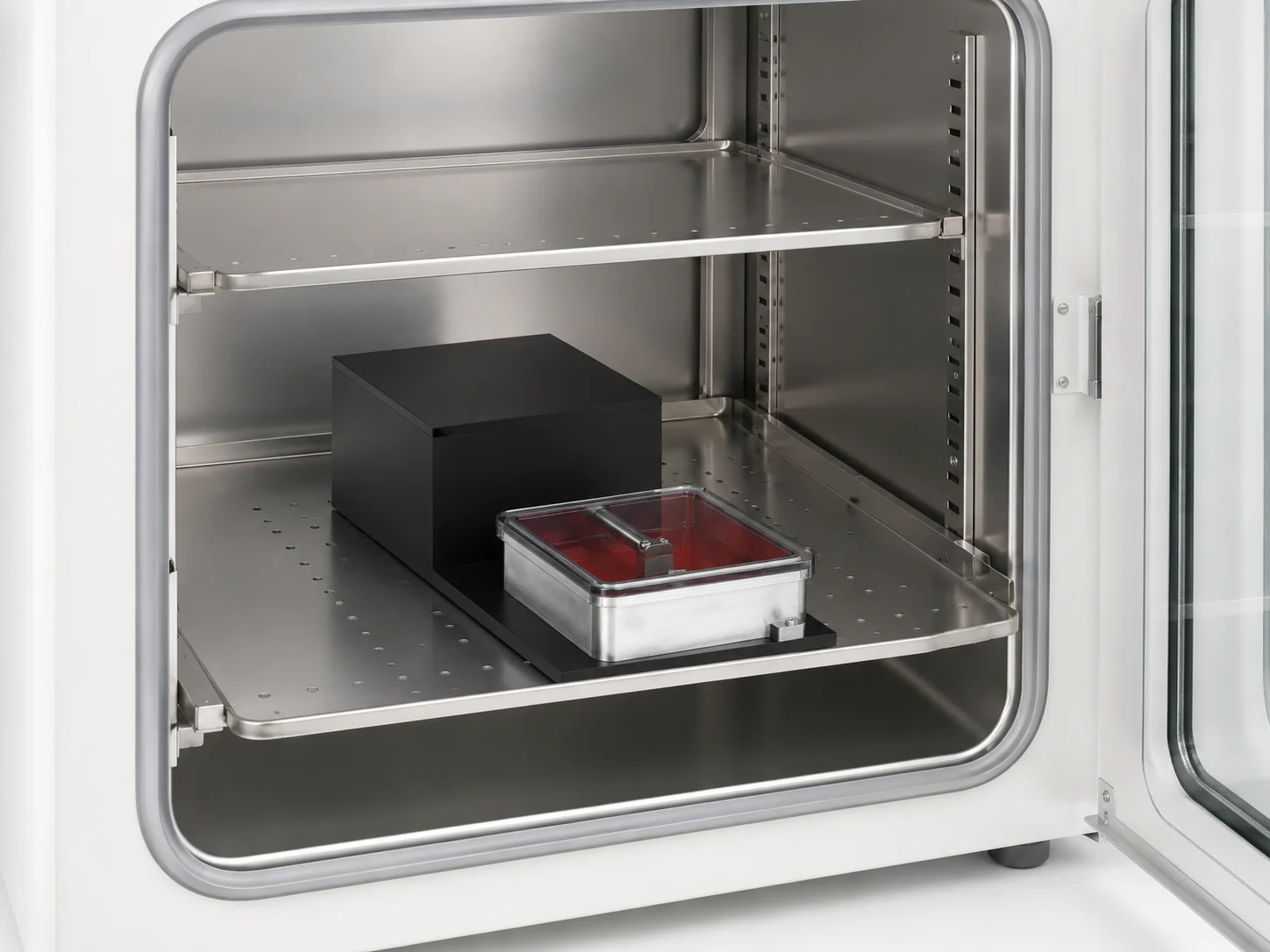

A tissue engineering bioreactor for higher-force uniaxial tension stimulation of up to six specimens with clamp-based gripping and long-duration regimens, without logged stiffness tracking.
MechanoCulture TR

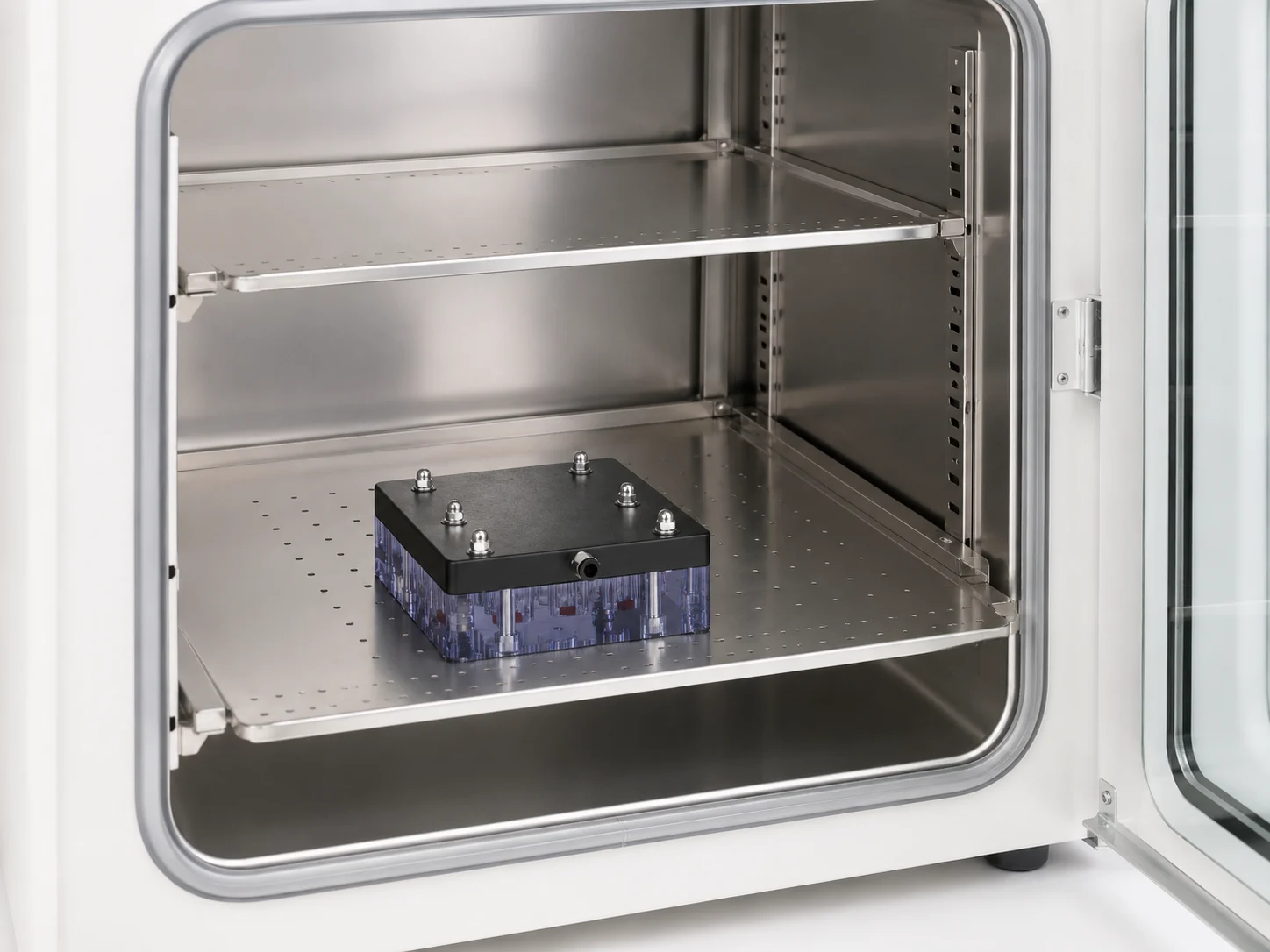

A hydrostatic pressure stimulation system for sealed-well hydrostatic pressure stimulation, supporting uniform pressure dosing through media and parallel cohorts.
MechanoCulture TX
A compression stimulation bioreactor for uniaxial cyclic compression in six wells, with force and displacement logging for stiffness tracking.
Components and Software for Mechanical Stimulation Bioreactors
MechanoCulture platforms are designed to support repeatable stimulation workflows through modular fixtures, sterile interfaces, and protocol programming tools. For many labs, the practical difference between a generic tissue bioreactor and a stimulation-first MechanoCulture system is the ability to run incubator-based regimens with consistent setup and clean data export.
Sterile interfaces and culture components
Membranes, plates, wells, and culture-contacting components support sterile separation between actuation hardware and the culture environment (including autoclavable parts). This is especially important for long-duration cell mechanical stimulation studies and cohort comparisons.

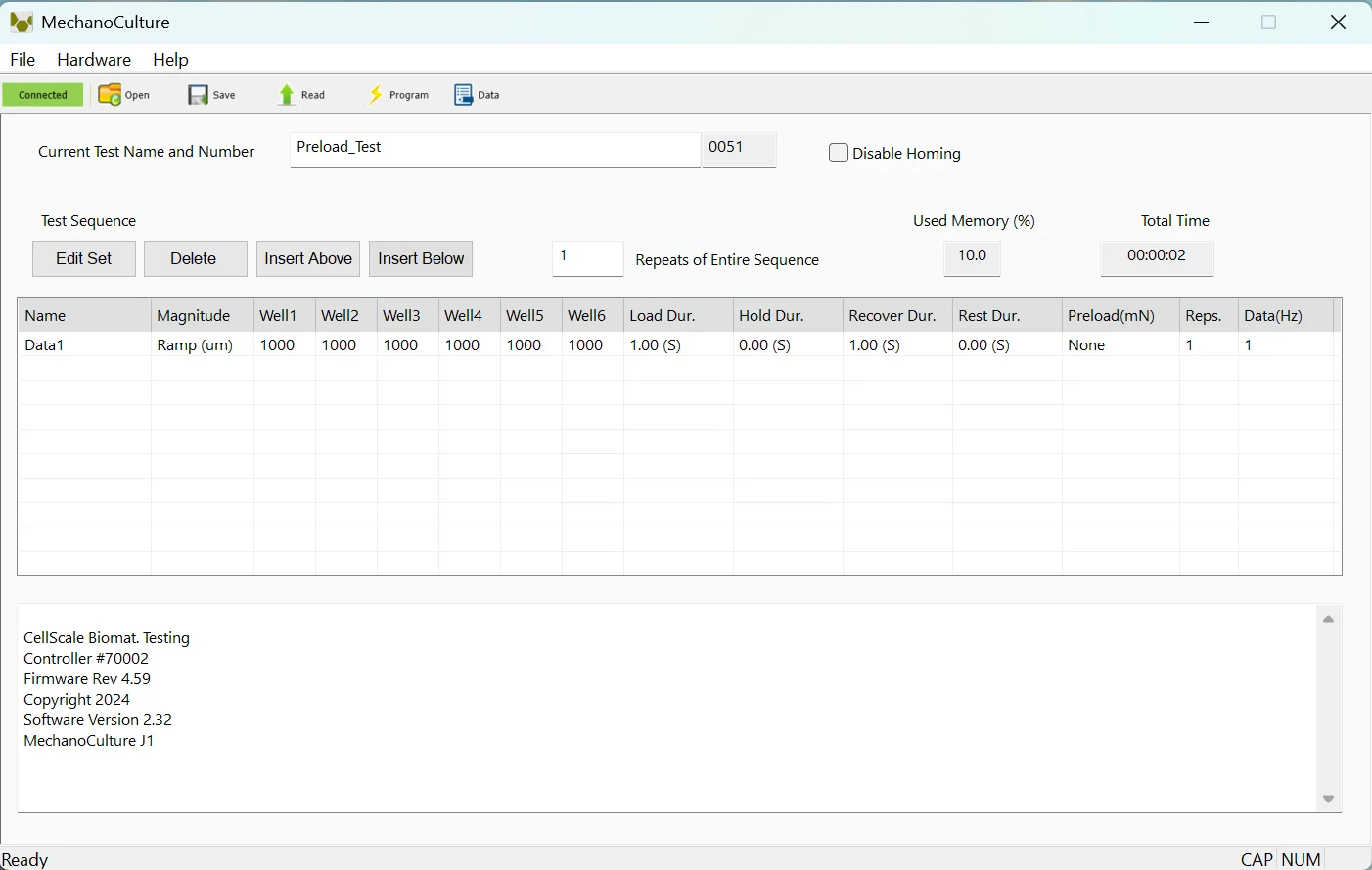

Protocol programming and control
The included software supports programmable regimens and repeatable protocol deployment for incubator execution. This helps standardize dosing schedules across experiments and operators.

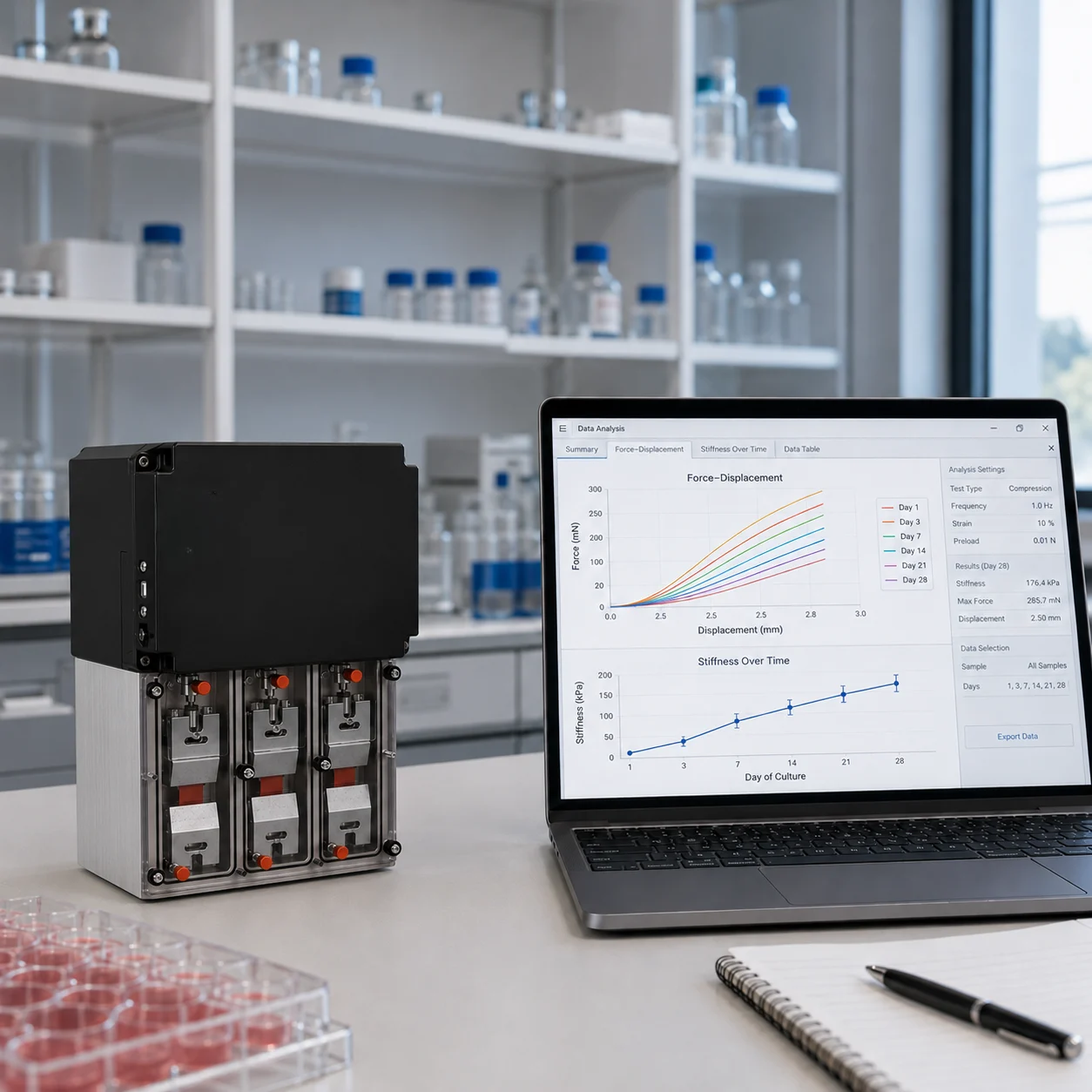

Data export and stiffness tracking
Force and displacement logging enables stiffness tracking over culture time, providing quantitative readouts that complement downstream biology. This capability is useful in many tissue engineering bioreactor workflows where maturation is expected to change construct mechanics.
Relevant Testing Methods
Selecting a bioreactor is often easiest when you start from the stimulus type and protocol design. Explore the methods below for guidance on building repeatable regimens and choosing the right platform.
FAQs About Mechanical Stimulation Bioreactors
What is a mechanical stimulation bioreactor?
A mechanical stimulation bioreactor is a culture-compatible system that applies controlled mechanical inputs, such as cyclic strain, compression, or pressure, while specimens remain in sterile, physiologic conditions. The intent is typically conditioning or mechanobiology stimulus delivery rather than post-test mechanical characterization.
How is a tissue bioreactor different from a mechanical testing system?
A tissue bioreactor is generally used to culture and condition samples over time, often inside an incubator, while a mechanical testing system is used to measure mechanical properties during a test session. MechanoCulture systems are tissue bioreactor platforms focused on programmable mechanical stimulation in culture.
Which system is best for cell mechanical stimulation in culture?
For cell mechanical stimulation via stretch, the MCJ1 is well-suited for well-based substrate or construct stretching with independent per-well control, while the MCT6 is designed for higher-force tension stimulation of constructs. For compression-based mechanical stimulation, the MCTX is the dedicated option. For pressure-based mechanobiology, the MCTR supports hydrostatic pressure stimulation.
When should I use hydrostatic pressure stimulation instead of compression?
Hydrostatic pressure stimulation is ideal when you want pressure dosing applied through media (for vascular tissue engineering applications, for example), often with uniform loading cues and sealed sterile wells. Contact compression is a better fit when you need direct platen-style compression through plungers, which is the focus of a compression stimulation bioreactor like the MCTX.
What does a cyclic strain bioreactor control?
A cyclic strain bioreactor controls strain magnitude, waveform, frequency, duty cycle, and dosing schedule across long-duration regimens. In incubator-based studies, this helps standardize mechanical dosing across cohorts and timepoints.

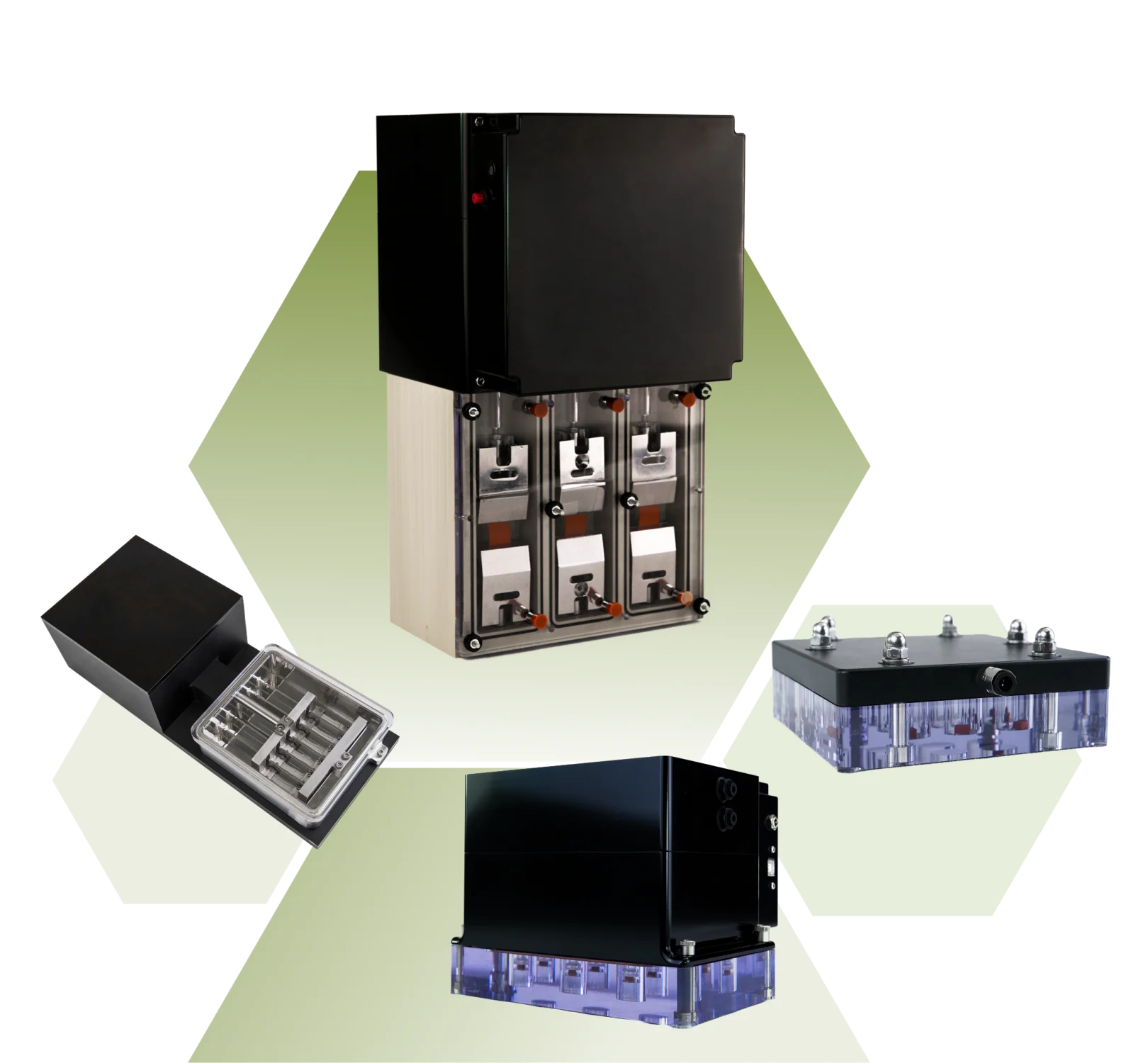

Explore the MechanoCulture Series
Whether you are selecting a tissue engineering bioreactor for construct maturation or building a platform for tissue or cell mechanical stimulation in mechanobiology research, the right system depends on the stimulus and specimen format. Explore the four MechanoCulture mechanical stimulation bioreactor platforms and choose the stimulation mode that matches your study design:
