Soft optical fibers have an awkward job when they are implanted on a moving organ. They need to carry light to a precise location, but they also have to bend and stretch with tissue, remain hydrated, and avoid drifting away from the target.

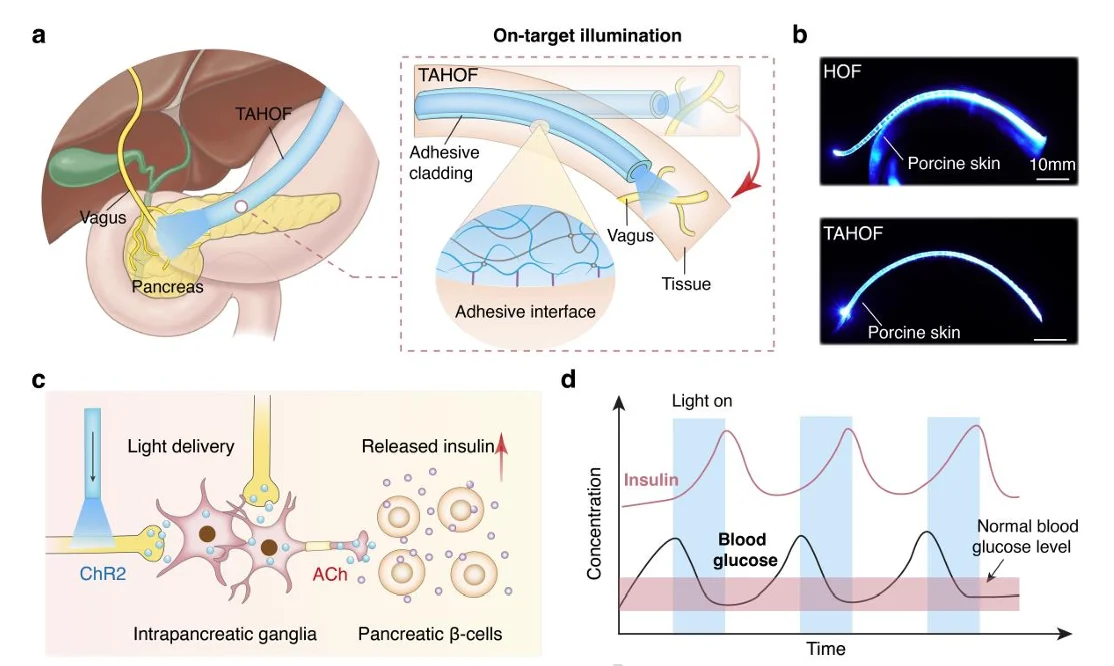

A 2026 study in Nature Communications, “Tissue-Adhesive Hydrogel Optical Fiber for Peripheral Optogenetic Neuromodulation,” approached that problem with a tissue-adhesive hydrogel optical fiber, or TAHOF. The fiber combined a light-guiding PHEMA core with a PAA-PVA adhesive cladding. It was designed for optogenetic stimulation near the pancreas, where breathing, posture, and normal organ movement can shift a conventional fiber out of position.
As an aside: The paper refers to a CellScale “horizontal tensile system.” This corresponds to our legacy UStretch system, which the researchers used for repeated loading in water and PBS. The UStretch has since been replaced by the UniVert, the current CellScale platform for comparable low-force tensile, cyclic and hydrogel optical fiber testing, along with a wider range of mechanical testing workflows.
Why Hydrogel Optical Fiber Testing Matters for Moving Organs
A hydrogel optical fiber can be soft enough to deform with tissue, but softness alone does not tell you whether the device will keep working. Here, function meant several things at once. The fiber had to transmit light, tolerate strain, remain attached to wet tissue, and recover after repeated movement.
The PHEMA core provided the higher refractive index needed to guide light. Around it, the PAA-PVA cladding had a lower refractive index and formed an adhesive interface with tissue through hydrogen bonding and electrostatic interactions.
The researchers were not only trying to make a flexible light guide. They were trying to keep that light guide aligned with a small neural target on an organ that does not stay still.
That makes the work a useful example of hydrogel mechanical testing where optical output was measured alongside deformation. It also overlaps with adhesives and sealants testing, since the interface had to remain bonded after soaking and cyclic movement.
Hydrogel Optical Fiber Testing Under Tensile Strain

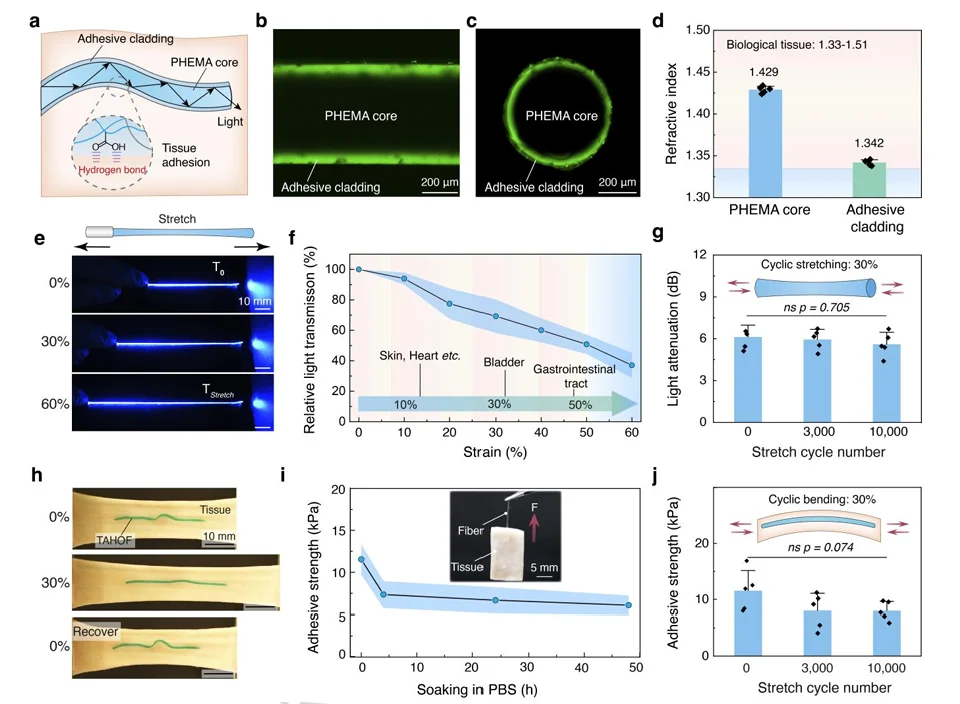

The researchers first looked at light transmission while hydrated fibers were stretched from 0% to 60% strain. At 30% strain, which they treated as representative of the higher end of physiological deformation in some organs, the fiber retained about 69% of its normalized light output.
Light continued to pass through the fiber at larger strains, although transmission fell as extension increased.
This is a fairly direct example of tensile testing being paired with a functional measurement. The question was not only how much force the fiber could carry. It was whether the optical path changed while the sample was under load.
Small, hydrated fibers can be difficult specimens to grip and align. We looked at a related problem in an earlier Research Highlight on hydrogel fibre mechanical testing, where individual protein-based fibers were measured in a submerged microscale setup.
The loading mode was different, but the practical issue was similar. Fiber geometry and hydration were part of the experiment, not details to be handled later.
What Happened After 10,000 Loading Cycles?
For the cyclic portion of the hydrogel optical fiber testing, the authors applied 30% strain for 10,000 cycles while the fibers were in aqueous immersion. Optical transmission was monitored during loading.
After cycling, normalized transmitted intensity remained above 95% of its initial value. Reported attenuation changed only slightly, from 6.1 ± 0.84 dB before cycling to 5.6 ± 0.86 dB after 10,000 cycles.
Given the spread in the measurements, the useful observation is that repeated loading did not produce a clear loss of optical performance.
This puts the experiment squarely in fatigue testing and material fatigue and durability. Ten thousand cycles is not a lifetime test for an implant, but it can expose early cracking, interface damage, or progressive optical loss if those problems are developing quickly.
Repeated deformation is a recurring question in hydrogel design. An earlier CellScale Research Highlight on anti-fatigue-fracture hydrogels examined materials built to resist damage over repeated stretch and relaxation.
In this study, the emphasis shifted from fracture alone to whether a soft optical device could keep transmitting light.
How Do You Test Wet-Tissue Adhesion After Repeated Loading?
The adhesive cladding was also evaluated using porcine tissues. Initial adhesion strength on porcine skin was about 11.5 kPa. After 48 hours in PBS, the measured strength was lower, around 6.1 kPa, but the interface remained bonded.
The authors then subjected tissue-fiber assemblies to 10,000 cycles at 30% deformation in PBS. Adhesive strength after cycling remained above 70% of its initial value.
One thing that stands out is that the study did not treat wet adhesion as a single pull-to-failure number. The interface was soaked, moved repeatedly, and then re-tested.
That makes hydrated and temperature controlled testing particularly relevant. Hydrogels can change as they absorb water, and tissue adhesives may lose strength as water competes with interfacial bonding.
A related example appears in our earlier article on wet conducting polymers with strong adhesion, where a functional polymer also had to stay attached during repeated movement in PBS.
How the UStretch Supported Hydrogel Optical Fiber Testing
Our legacy UStretch system was used in two parts of the study.
First, the researchers mounted the hydrogel optical fibers in the system and applied 10,000 cycles at 30% strain in aqueous immersion. Light output was recorded during loading, so the mechanical test and optical measurement ran together.
Second, the ends of the tissue-TAHOF joints were fixed in the horizontal system, immersed in PBS, and cycled 10,000 times at 30% deformation. The joints were then assessed by lap-shear testing to see how much adhesion remained.
This is also a good example of fibre testing where the result of interest is not limited to modulus or failure strain. The specimen was a working optical component. The test was asking whether repeated deformation changed what that component did.
From Hydrogel Optical Fiber Testing to a Moving Organ
The benchtop results were followed by simulations and in vivo tracking.

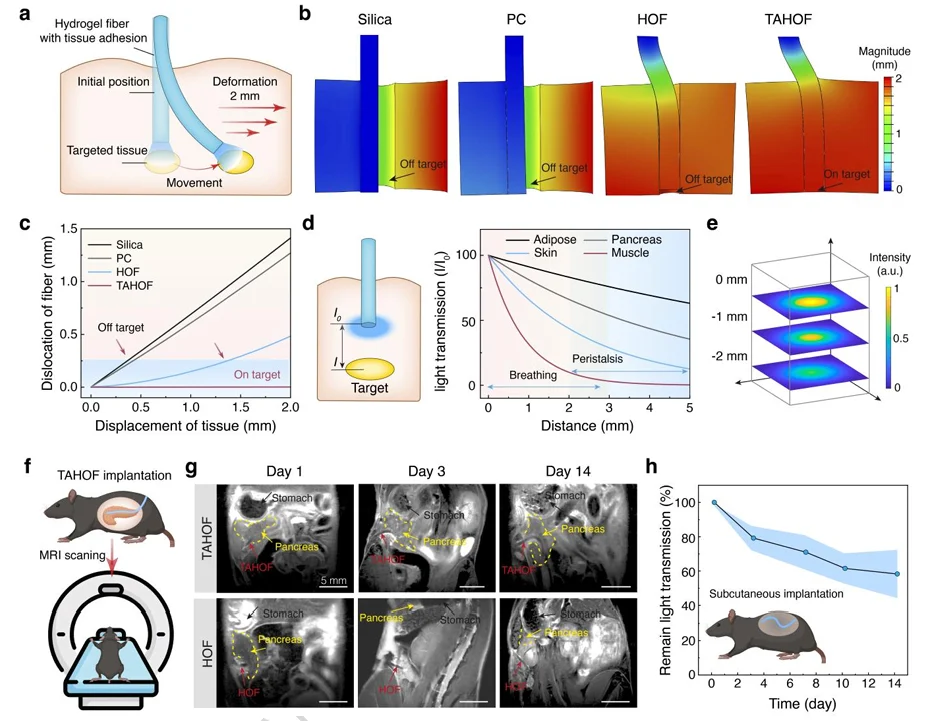

In the finite element model, rigid silica and polycarbonate fibers developed larger position errors as the surrounding tissue moved. The non-adhesive hydrogel fiber moved more easily with the tissue, but still shifted relative to the intended target. The adhesive TAHOF remained much closer to the target in the model.
MRI gave a more practical comparison. Both adhesive and non-adhesive fibers were initially positioned near the pancreas. By day 3, the non-adhesive control had started to move, and by day 14 it had migrated farther toward neighbouring anatomy. The tissue-adhesive fiber remained near the pancreas.
Light transmission through the implanted TAHOF declined gradually, to roughly 79% of its initial value at day 3 and 58% at day 14. That is not complete stability, but it is different from an abrupt loss caused by detachment or fracture.
The application also touches on peripheral nervous system mechanics, although the work concerns neuromodulation rather than nerve regeneration. The mechanical problem is still a peripheral interface problem: keeping a soft device aligned with a neural target while the surrounding organ moves.
What Happened During Pancreatic Optogenetic Stimulation?

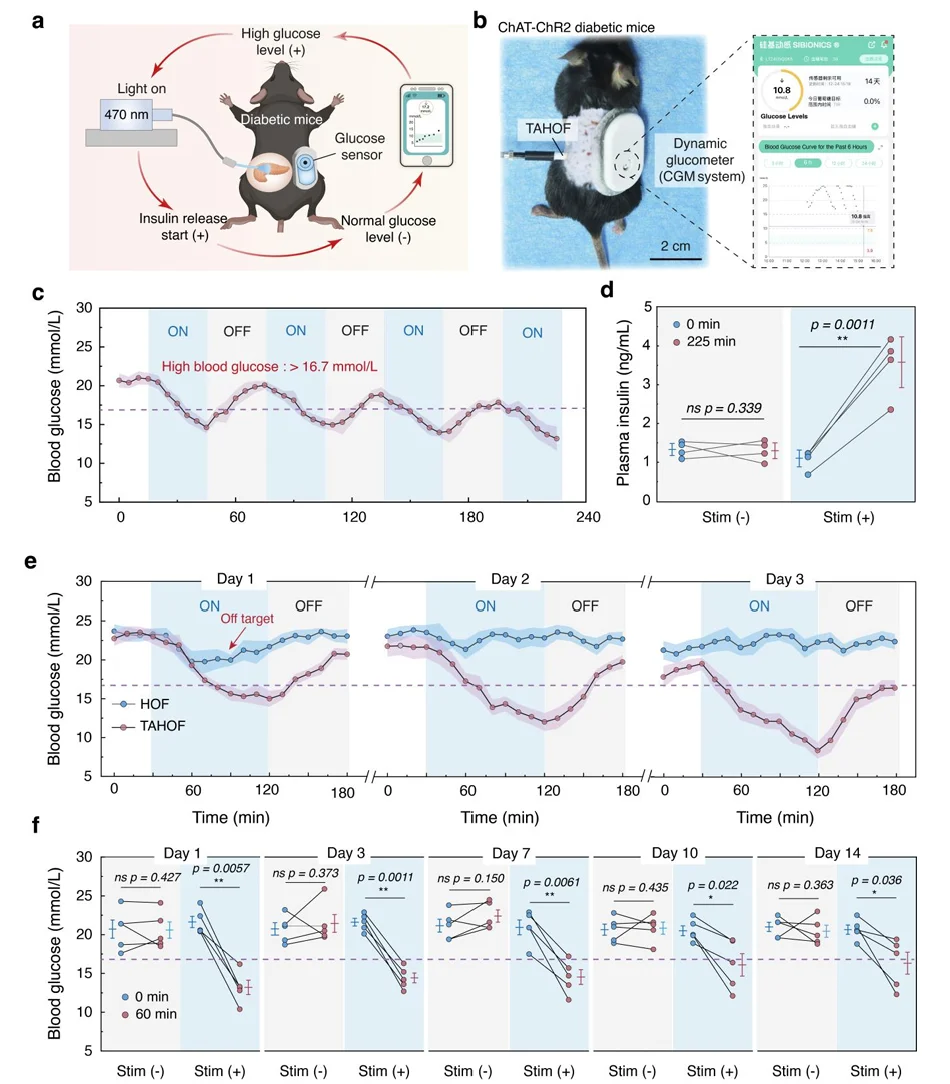

The implanted fibers delivered 470 nm light near cholinergic vagal fibers associated with the pancreas. In ChAT-ChR2 mice, stimulation produced time-locked neural responses and was followed by increased insulin and lower blood glucose during glucose challenge.
The diabetic mouse experiments are where the adhesive interface became easier to see in functional terms.
With repeated stimulation over three days, the tissue-adhesive fiber continued to produce reductions in blood glucose. The non-adhesive fiber produced an early response, then lost effectiveness as it shifted away from the intended site.
The authors also tested stimulation on days 1, 3, 7, 10, and 14 after implantation. Blood glucose decreased during stimulation at each time point, although the response became smaller later in the study. That decline appears consistent with the gradual reduction in optical transmission measured from the implanted fibers.
These experiments do not make the fiber a clinical diabetes treatment. They were conducted in a transgenic mouse model with an implanted optical system.
What they do provide is a concrete reason why hydrogel optical fiber testing cannot stop at initial strength or stretchability. Position, adhesion, optical output, and repeated movement were all connected to whether the interface still reached the intended neural target.
What This Study Adds to Hydrogel Optical Fiber Testing
There are several ways to test a soft optical fiber, and each tells only part of the story.
A monotonic tensile test can describe strength and stretchability. A strain sweep can show whether light transmission changes during extension. Cyclic loading can reveal gradual damage. Soaking and adhesion tests add another layer, particularly when the device is meant to sit on wet tissue.
In this case, the more useful part of the hydrogel optical fiber testing was the combination. The authors measured a functional output during loading, then checked the interface after immersion and 10,000 cycles. They also followed the fiber after implantation rather than assuming that good benchtop adhesion would translate directly to a moving pancreas.
It appears that the adhesive cladding reduced one of the main failure modes, displacement from the target.
The study still showed gradual optical loss over time, so the interface was not mechanically or optically unchanged. That remaining loss may be just as useful for future designs as the short-term cyclic result.
Citation
Chen, X., Wang, L., Wang, C. et al. Tissue-adhesive hydrogel optical fiber for peripheral optogenetic neuromodulation. Nat Commun (2026). https://doi.org/10.1038/s41467-026-74831-1
Hydrogel Optical Fiber Testing With Today’s UniVert
The UStretch was CellScale’s earlier horizontal uniaxial testing system. It was used in studies like this one to stretch soft samples in controlled environments and to run cyclic tests while other measurements were collected.
It has now been replaced by the UniVert.
The UniVert carries forward this type of low-force uniaxial testing, with current configurations for tension, compression, fatigue, creep, stress relaxation, hydrated testing, and other soft-material workflows. Researchers use it for hydrogels, fibers, biological tissues, polymers, scaffolds, and implantable materials in university and industrial laboratories around the world.
For work similar to this study, the UniVert can apply controlled strain to a hydrated fiber or tissue-device interface while optical, imaging, or electrical measurements are collected alongside the mechanical data.
The exact fixture and bath arrangement depends on the specimen. The underlying question is much the same: after repeated movement in a wet environment, does the device still do what it was designed to do?
