MechanoCulture T6

High force uniaxial stimulation of 6 parallel specimens

The MCT6 uses a powerful actuator and screw-driven clamp grips to apply user-specified stretch protocols. The systems support specimens up to 10mm wide and 80mm long. The system can also be adapted to wider sheet-like specimens and fiber specimens. The entire assembly can be sterilized and is suitable for long-term cell culture in a laboratory incubator.

Key Features

  • Uniaxial stretch up to 80mm grip separation
  • Compatible with a wide range of materials including silicone membranes, decellularized tissues, hydrogels, electrospun materials, and more.
  • PC-independent operation
  • User-friendly interface software for specifying simple, cyclic, and intermittent stimulation protocols for download to the device controller
MCT6

Options

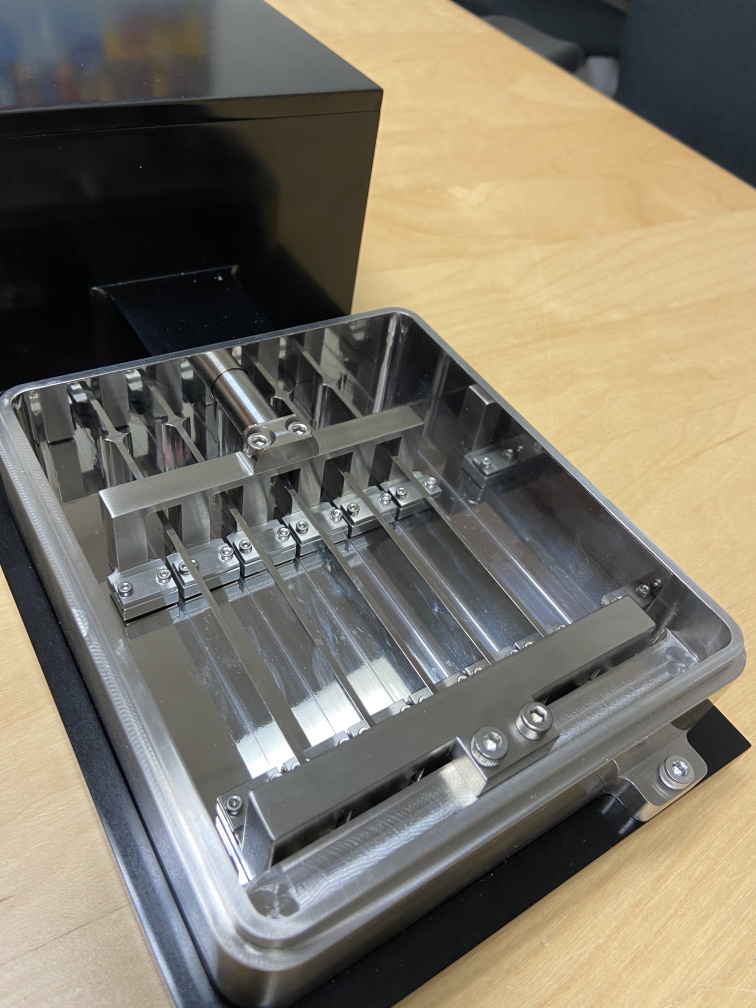

A 6-well option for the MechanoCulture T6 is also available

 Contact us to let us know your custom requirements!

Videos

MCT6 introduction

We are using CellScale equipment for the last two years to assess the influence of mechanical stimulation on permanently differentiated and stem cells' fate. The interface is user-friendly, the customer support service is very helpful, the equipment is easy to use and inexpensive, yet precise and robust.

Prof. Dimitrios Zeugolis

National University of Ireland Galway

The CellScale MechanoCulture has been a very versatile bioreactor platform for us. It's size and the ability to pre-program the bioreactor conditions results in a cost-effective solution to our bioreactor needs. In addition, the software is intuitive and easy to use. CellScale has been easy to work with and has quickly addressed any issues we have come across.

Prof. Brian Amsden

Queens University

TECHNICAL INFO

Dimensions 36 X 15 X 9cm
Weight 3kg
Stimulation mode Uniaxial tension
Configuration 3D constructs and tissues
Culture area 6 strips, up to 80mm long
Maximum strain >100%
Maximum Velocity 20mm/s
Maximum Cycle Frequency 2Hz
Loading capacity 200N
Media volume 100-300mL
